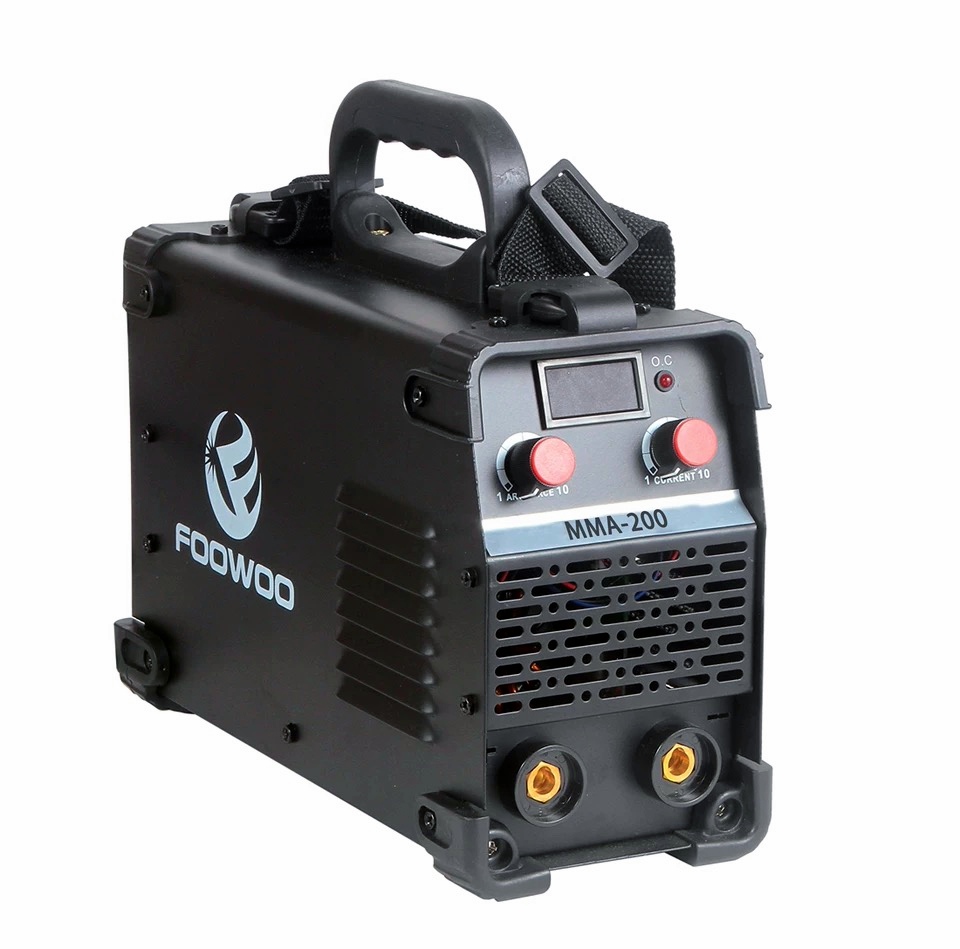

MMA-200 welding machine, it adopts DC inverter IGBT technology, stable arc performance, high energy efficiency and smooth welding output, new outside design with plastic panel. The welding machine is with over-current, over-voltage, over-heating protection function.. The welder machine equipped with handle, making it easy to carry anywhere you want. Our MMA welding machine has the four main features: thermal protect, anti sticking, hot start, ARC force.
1. IGBT inverter welding machine that are available for rutile and basic electrode. Both rutile and basic electrodes are fully matched to the MMA-200 welding machine, adapting to its multi-protection and stable are performance.
2. Auto adaptive arc force minimizes electrode sticking in the puddle without compromissing the arc stability or increased spatter.
3. With VRD ( Voltage Reduction Device), a critical safety feature designed to minimize electric shock risks during non-welding states.

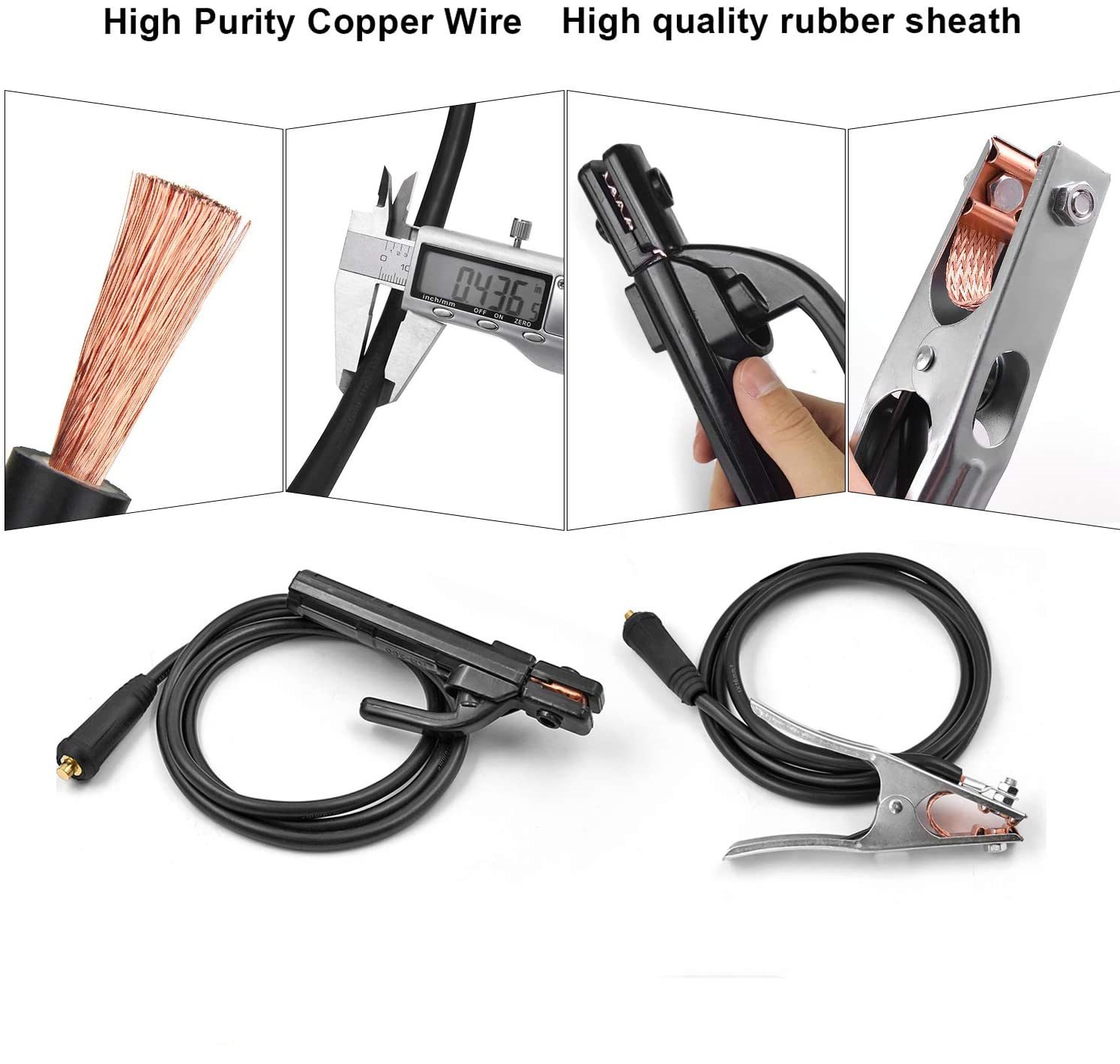

4. With all the accessories: Electrode holder, earth clamp, brush, mask
Rated Input Voltage: 1 phase, 230V+15%
Input Frequency: 50/60HZ
Rated Input Power: 7.3KVA
No-load Voltage: 62V
Output Voltage: 28V
Output Current: 30-200A
Duty Cycle: 60%
Efficiency: 85%
Electrode Diameter: 1.6-4.0mm
| Welding Type | Advantages |
| Stick/MMA(SMAW) | Better suited for windy, outdoor conditionsMore forgiving when welding on duty or rusty metal. |
| Flux Cored(FCAW) | Works as well as stick on duty or rusty materialOut-of-position weldingDeep penetration for welding thick sectionsIncreased metal deposition rate |
| Plasma Cutting Machine | Use with any electrically conductive metalsSmall and precise cutSmall heat-affected zone which helps prevent warping or paint damage |
| MIG(GMAW) | Easiest process to learnHigh welding speeds possibleProvides better control on thinner metalCleaner welds possible with no slag to cleanSame equipment can be used for Fluxed-cored weld |
| TIG | Provides highest quality and most precise weldsHighly aesthetic weld beadsAlloy adjustment of heat input while welding by use of a remote control |
Products Range: MMA welding machines, TIG welding machines, MIG/MAG welding machines, Air Plasma Cutter. Welding Helmets, Welding Gloves.
Capacitor: 20000 sets/month
Marketing: All over the world
Certification: CE, ISO9001
Warranty: 24 months.
Services: 7*24 hours technical support by email or calling.
OEM/ODM Acceptable.
100% QC inspection before shipping.
Free welding parts can be sent to you within warranty period.
Small order is acceptable.
