1. Single PCB.
2. Adopt IGBT technology, saving energy.
3. Anti-stick, thermostatic protection, less splash.
4. High efficiency, light, compact, easy to operate.
5. Suit for carbon steel, stainless steel, alloy steel and cast iron welding.
6. Accessories: Electrode holder, earth clamp, brush/hammer, protective mask and carton box.
Our MMA 140 DC Inverter Arc Welder machines has passed many professional tests before leaving our factory. We provide one-year quality service for each client. We take care of all of your safety based on over-current, over-voltage, overload, over-heating protection functions.
| Item No. | Arc 140 mini |
| Input Voltage | 230V, 1 phase |
| Frequency | 50/60HZ |
| Rated Input Capacity | 4.5KVA |
| Power Factor | 0.93 |
| Max. No-load Voltage | 60V |
| Current Range | 20-140A |
| Rated Duty Cycle | 60% |
| Usable Electrode | 1.6-3.2mm |
| Insulation Class | H |
| Protection Degree | IP21S |
| Welding Type | Advantages |
| Stick/MMA(SMAW) |
Better suited for windy, outdoor conditions More forgiving when welding on duty or rusty metal. |
| Flux Cored(FCAW) |
Works as well as stick on duty or rusty material Out-of-position welding Deep penetration for welding thick sections Increased metal deposition rate |
| Plasma Cutting Machine |
Use with any electrically conductive metals Small and precise cut Small heat-affected zone which helps prevent warping or paint damage |
| MIG(GMAW) |
Easiest process to learn High welding speeds possible Provides better control on thinner metal Cleaner welds possible with no slag to clean Same equipment can be used for Fluxed-cored weld |
| TIG |
Provides highest quality and most precise welds Highly aesthetic weld beads Alloy adjustment of heat input while welding by use of a remote control |

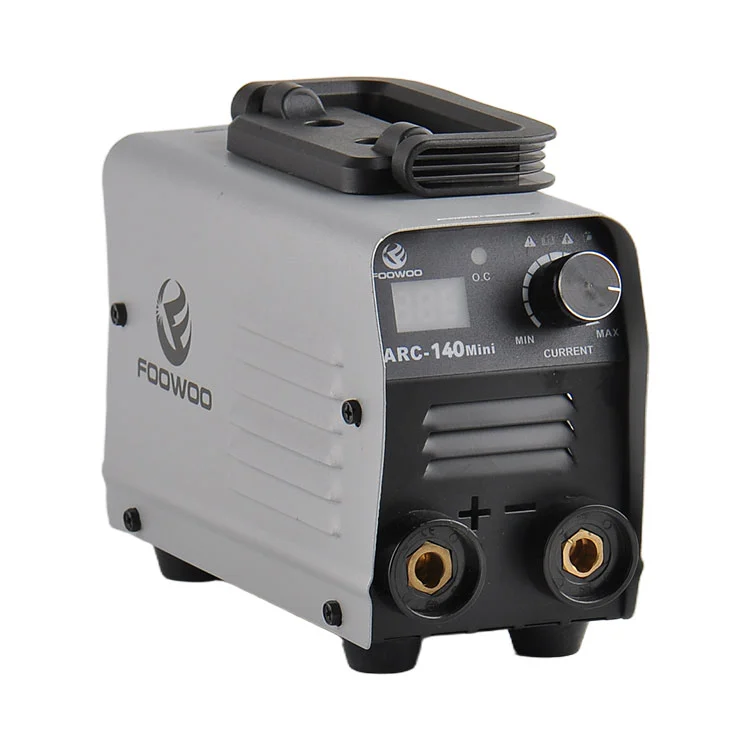

Our MMA 140 DC Inverter Arc Welder adopts advanced IGBT technology and a single PCB design. The body is lightweight and compact, making it easy to carry. It can be easily adapted for both household welding and mobile operations. Equipped with a large-view LED display, the current parameters are clear and easy to read. It can flexibly adjust the output current from 20 to 140A, compatible with 1.6 to 3.2mm welding rods. It can weld carbon steel, stainless steel, alloy steel and cast iron, meeting diverse usage needs.
Each welder undergoes multiple professional inspections before leaving the factory. Only those that pass 100% quality inspection can be shipped. The body is equipped with multiple protection functions such as overcurrent, overvoltage, overload and overheating protection, providing comprehensive safety guarantees and reducing the occurrence of faults. It also has a non-stick wire protection function, resulting in less welding splatter and making the operation more convenient.
We provide complete accessories, including welding clamps, grounding clips, brushes, hammers, protective face masks and cartons. Once the product is received, it can be directly put into use. We also offer a one-year warranty service, 7x24-hour technical support, and can solve various problems in use at any time. We support small order customization and OEM/ODM services. With professional strength and considerate service, we will become your reliable welding equipment partner.
