1. Adopt IGBT Inverter technology, digital signal control SYNERGIC processing.
2. Single pulse welding machines.
3. Multi-functions: MIG, MAG, FLUX, TIG LIFT, MMA
4. Applicable for various materials: Iron, carbon steel, cast iron, Er316, Er308, AIMg5, etc.
5. Hot star, arc force, anti-stick, burn back, inductance, VRD, 2T, 4T, short circuit protection, thermal protection.
6. Current 160A, 180A, 200A, 250A is optional.
| Model | MIG-160 | ||
| Input Voltage | AC220V+ 15% | ||
| Frequency | 50/60HZ | ||
| MIG | MMA | LIFT TIG | |
| Rated Input Power | 4.5KVA | 4.6KVA | 2.8KVA |
| Duty Cycle | 25% 200A | 25% 180A | 25% 200A |
| Welding Current Range | 20-160A | 20-140A | 15-140A |
| Wire Diameter | 0.8-1.0mm | 1.6-4.0mm | |
| No-load Voltage | 56V | ||
| Efficiency | 85% | ||
| Power Factor | IP21 | ||
| Protection Class | F | ||
| Cooling | AF | ||

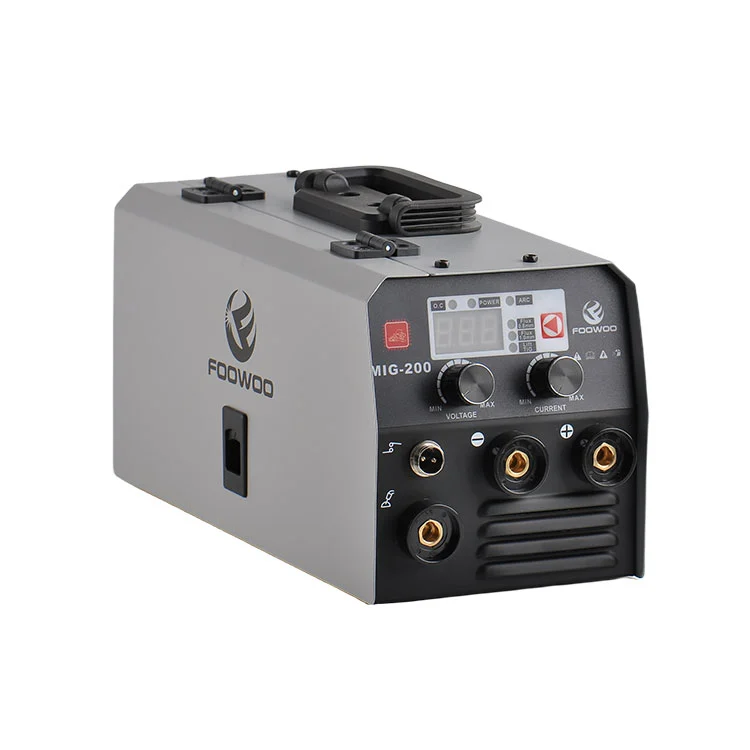

| Model | MIG-200 | ||
| Input Voltage | AC220V+ 15% | ||
| Frequency | 50/60HZ | ||
| MIG | MMA | LIFT TIG | |
| Rated Input Power | 6.6KVA | 6.7KVA | 4.9KVA |
| Rated Input Current | 30A | 32A | 22A |
| Duty Cycle | 25% 200A | 25% 180A | 25% 200A |
| Welding Current Range | 20-200A | 20-180A | 15-200A |
| Welding Voltage Range | 15-25V | 20.8-27.2V | 10.6-18V |
| Wire Diameter | 0.8-1.2mm | 1.6-5.0mm | |
| No-load Voltage | 72V | ||
| Efficiency | 85% | ||
| Power Factor | IP21 | ||
| Protection Class | F | ||
| Cooling | AF | ||
| Comparison Dimension | MIG welding machine | TIG welding machine |
| Purpose | High-efficiency mass welding | High-precision, high-quality welding |
| Applicable Thickness | Mainly medium-thick plates | Mainly thin plates, can weld thick plates but with low efficiency |
| Weld Appearance | Attractive form with slight spatter | Smooth form with minimal spatter |
| Equipment Cost | Medium (requires wire feeder) | Higher (requires argon regulator, high-frequency arc starter) |
Each MIG and TIG welding machines undergoes 100% quality inspection before leaving the factory. It has passed CE and ISO9001 certifications, ensuring quality and safety. It is equipped with complete accessories, including welding pliers, grounding clips, brushes, hammers, protective face masks and cartons. Users can start using the product directly after receiving it. We offer a 24-month warranty and 7x24-hour technical support. We accept small orders and provide reliable after-sales service for global buyers.
